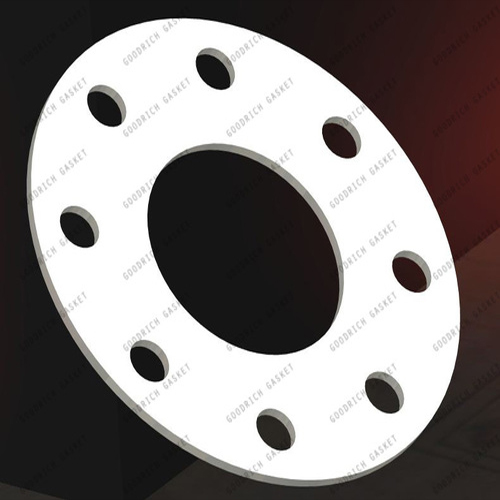

PTFE & Expanded PTFE Gaskets

PTFE & Expanded PTFE Gaskets
PTFE & Expanded PTFE Gaskets
Product Code : 111
Product Specifications
  • Standard
  • ASME B16.21, DIN 1514-1
  • Material
  • PTFE, Expanded PTFE
  • Shape
  • Flat Gasket
  • Type
  • Raised Face (RF), Full Face (FF)
Trade Information
  • Main Export Market(s)
  • Asia, Central America, North America, South America, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008 ISO 14001:2004 OHSAS 18001:2007 API 6A API 17D
Product Description

As a renowned entity in this domain, we are betrothed in providing the best quality PTFE & Expanded PTFE Gaskets. By a team of ingenious professionals, these gaskets are manufactured using synthetic polytetrafluoroethylene at our production unit. Appreciated in chemical, pulp and paper, pharmaceutical, food processing and other industries, offered gaskets are used to prevent fluids leakage and to eliminate ingress of impurities. Clients can avail these PTFE & Expanded PTFE Gaskets consignment in proper packaging.

Key points:

  • Fill gaps or irregularities between mating surfaces
  • Anti-aging finish
  • Resistant to alkaline, acids or other materials
  • Easy to fit

















Further Details:

PTFE (Polytetrafluoroethylene) is an inert material with excellent chemical resistance, electrical and thermal insulation. They can be operated in temperatures from cryogenic to 2600 Degree Celsius offering non-corrosive, non-wetting, non-contaminating and odorless operation. PTFE gaskets by Goodrich Gasket are mainly used in the presence of aggressive chemicals such as acids, bases and solvents. Offering versatility and convenience in the form of a highly conformable flexible strip is the expanded PTFE gaskets by Goodrich Gasket Pvt Ltd that is used in non-standard flange applications. It is also a backup sealing option under non availability of conventional gaskets.

We at Goodrich Gasket offer PTFE gaskets with excellent chemical resistance and inherent cleanliness making the product a suitable sealing agent against aggressive media or feedstock contaminated areas. The presence of an adhesive backed strip eases the installation in large or complex flange applications, such as air conveying and solvent recovery systems.

Expanded PTFE gaskets are suitable for temperatures ranging up to 5000F and for cryogenic applications like hydraulic systems, water supply systems, ventilation ducts, fan housing, fume ducts, pneumatic systems, engine case doors etc.

Goodrich Gasket offers the following width and thickness of expanded PTFE gaskets:-

Widths & thicknesses of Expanded PTFE gaskets at Full compression
Sealant thickness [mm] Sealant width [mm] Compressed thickness [mm] Compressed width [mm]
1.5 3.175 0.3 6
2 5 0.4 10
2.5 7 0.45 13
4 10 0.55 20
5 12.5 0.8 24
5 14 0.8 22
6  [7/32"] 17 1 29
6 19 1.25 34
6 25 1.25 45

 Its all in the bolt forces that ultimately decide on the gasket sealing capacity and the bolt forces per unit length of seal as follows:

Width [in ] Gas Tight [lbf/in]
(Based on compressed air at 600psi)
Water Tight [lbf/in]
(based on water at 30psi)
  Smooth flanges Rough flanges
1/8 500   280
3/16 1260   280
¼ 1260 2520 390
3/8 1540 2800 390
½ 1540 2940 390
5/8 1680 2940 420
3/4 1960 3360 420
