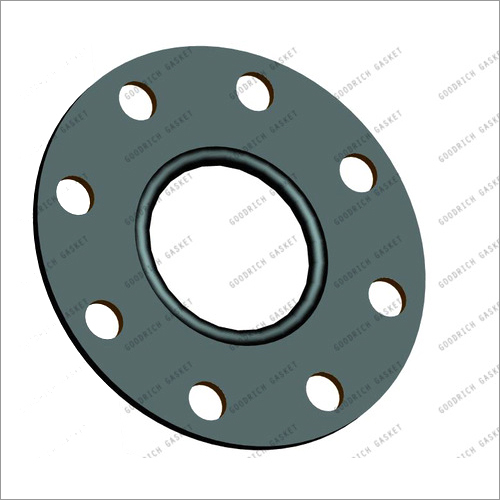

Metal Reinforced Gasket

Metal Reinforced Gasket
Metal Reinforced Gasket
Product Code : 333
Product Specifications
  • Minimum Order Quantity
  • Material
  • Metal, Nylon, Rubber, Other
  • Shape
  • Flat Gasket
  • Type
  • Raised Face (RF), Full Face (FF)
Trade Information
  • Main Export Market(s)
  • Asia, Central America, North America, South America, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008 ISO 14001:2004 OHSAS 18001:2007 API 6A API 17D
Product Description

With rich industry and market knowledge, we are affianced in providing a premium range of Metal Reinforced Gasket. In order to eliminate the leakage and contaminant ingress, the offered gasket is used in various industrial equipment like compressor, pipe flange, boilers etc. A team of ingenious professionals manufacture this gasket using high grade monel, copper, brass, titanium, aluminum and other materials. We put forth the provided Metal Reinforced Gasket in various sizes and finishes.

Key points:

  • Easy to fit
  • Prevents gasket puncture
  • Maintains a static seal between mating components
  • Resistant to corrosion



Further Details:

The laminated gaskets merged with metal core, covered utilizing soft amenable sealing materials on every face of the center are the Metal Reinforced Gaskets, which fall in the ambit of up to pressure class 300. The solid metal core group prevents gasket puncture by giving high strength and rigidness while the soft core adjudges for extraordinary gasket sealing.

Metal Reinforced Gaskets manufactured at Goodrich Gasket Pvt Ltd find their utilization in petroleum and chemical industries being the high temperature gaskets, providing corrosion opposition and advanced integral jointing.

The metal core substantial have chemical resistivity and temperature stability that are designated to meet the requirements of the media to be sealed that is either 304 or 316L Stainless Steel with standardized core thickness of 1/8”. Soft gasket facings feature bendable graphite as their modular material.

Following are the listings of gasket physicals offered by Goodrich Gasket for metal reinforced gaskets:

All-metal core materials:


1. Stainless Steel Types 316L, 309, 310, 317L, 304, 321, 347 and 430.
2. Inconel 600, 625, X -750.
3. Hastelloy B2, C276.
4. Incoloy 800, 825
5. Monel, Copper, Brass, Titanium, CS, Aluminum, Alloy 20, Nickel 200,Duplex etc.

Soft facing substantial:

1. PTFE
2. Compressed Fiber
3. Flexible graphite
4. Soft metals etc.

The Metal Reinforced Gaskets we offer can be used as the parts of customary particular type spiral wound gaskets or compressed fiber gasket sheets.

But the primary utilization rests on particular type assemblies and due to the laser manufacturing methods at Goodrich Gasket we offer these products in all shapes and sizing. The Metal Reinforced Gaskets are also applicative in limited or restricted space usages, limited bolt load conditions in seating the gasket.

Goodrich Gasket’s metal strengthened gasket has a constricting cross sectional width putting it into utilization for floating head provisions of heat exchangers, earning the utilization as heat exchanger gaskets.
